Air Mesh Fabric: the Ventilated Back Panel Every Hot-Climate Backpack Needs
Air mesh - also called sandwich, spacer or 3D mesh - is two knitted polyester faces held apart by monofilament pile. The result is a springy, breathable pad that pulls the bag away from the wearer's back and lets air move.
Senszx Fabrics stocks 3 mm to 8 mm air mesh in black and 8 colours, plus flat 2D mesh for bottle pockets. Every hot-climate backpack we see specified for the GCC, India or Southeast Asia uses it on back panel and straps.
Air mesh fabric specifications at a glance
- Thickness
- 3 / 5 / 8 mm spacer; 2D flat mesh
- Weight
- 250 - 450 gsm
- Fibre
- 100% polyester, monofilament pile
- Stock colours
- Black + 8 colours
- Custom colour MOQ
- 1,000 m
- Width
- 58" / 150 cm
- Finish
- Quick-dry; antibacterial on request
- Cost vs 600D polyester
- 1.5x - 2.5x by thickness
Air mesh weights and variants we stock
Each variant below is held in stock or dyed to order. Weights are with standard coating; uncoated rolls run 10-15% lighter.
| Variant | Weight | Best for | Note |
|---|---|---|---|
| 2D flat mesh | 120-180 gsm | Bottle pockets, ventilation windows | Stretchy, see-through |
| 3 mm air mesh | 250-300 gsm | Shoulder strap faces, lumbar pads | Thin, flexible |
| 5 mm air mesh | 320-380 gsm | Back panels on school and daypacks | Most common spec |
| 8 mm air mesh | 400-450 gsm | Hiking and tactical back panels | Max airflow and cushioning |
| Honeycomb mesh | 300-350 gsm | Premium back panels | Large hexagonal cells |
Where air mesh wins - and where it does not
Strengths
- Cuts back sweat noticeably - the hot-climate essential
- Springy pile adds cushioning without extra foam
- Quick-drying and washable
- Colour-matches 600D polyester bodies
- Available with antibacterial finish for sports and school programmes
Watch out
- Snags on rough surfaces; never use as an outer body fabric
- Pile compresses over years of heavy load - pair with EVA foam on load-bearing straps
- Dark colours show lint and dust
Coatings and finishes for air mesh
The back-coating or finish decides water resistance, cold-weather behaviour and, often, whether the bag passes EU retail requirements. Cost is relative to the uncoated base fabric.
| Finish | Effect | Cost |
|---|---|---|
| Quick-dry | Standard on all air mesh | - |
| Antibacterial | Silver-ion treatment for sports and school bags | + |
| Foam lamination | EVA or PE foam bonded to the mesh for one-piece panels | ++ |
| Colour matching | Dyed to the same Pantone as the body fabric | + |
What bags are made from air mesh
These are the builds our sister factory Senszx approves most often for air mesh. Each links to the matching production page if you need the bag made, not just the fabric.

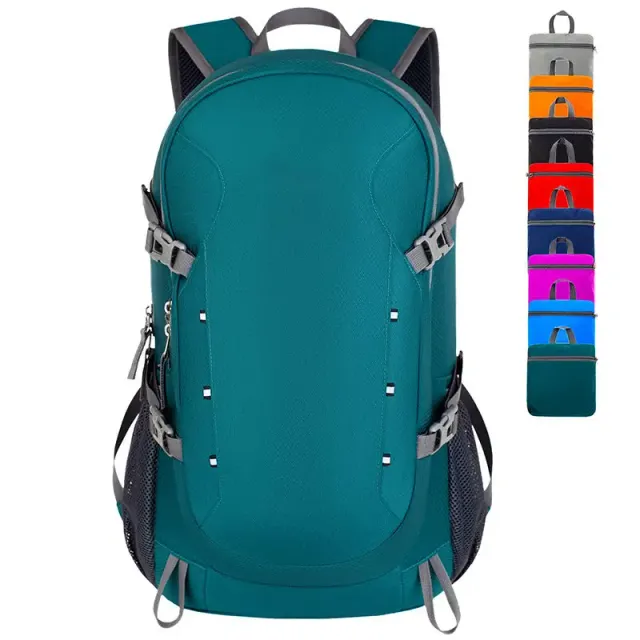

Hiking backpacks
8 mm air mesh on back panel and straps with EVA foam behind it is the hiking-pack standard for airflow and load comfort.
hiking backpacks with ventilated back panels
School backpacks in hot climates
5 mm air mesh on back and straps is mandatory on the GCC and Indian school programmes we supply.
school backpacks
Tactical and duty packs
Black 8 mm mesh with 1000D nylon body and MOLLE webbing on every tactical build.
tactical backpacks

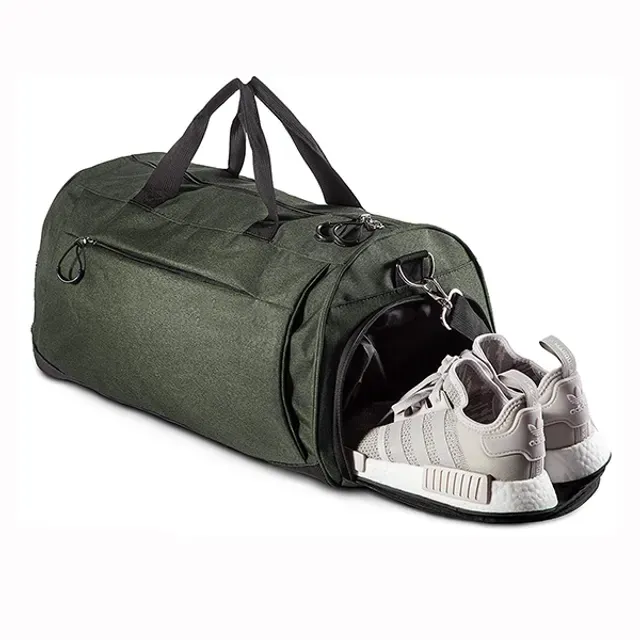

Gym and sports bags
Mesh ventilation windows and shoe compartments let gym kit breathe; antibacterial finish available.
gym bagsHow every air mesh roll is tested
Test reports ship with the order. Third-party tests (SGS, BV, Intertek) for REACH, CPSIA or Prop 65 are arranged on request.
- 01Weight and thickness against spec
- 02Colour vs body fabric lab dip in D65 cabinet
- 03Compression recovery after 24 h load
- 04Pilling and snag resistance on face
- 05Colour fastness to perspiration (sweat) grade 4+
- 06Antibacterial efficacy report where specified
Once the roll is approved it can go straight into the fabric cutting room and through the six-gate bag inspection process without a second incoming check.
Air mesh fabric FAQs
Compare with other bag fabrics
Polyester Fabric
600D / 900D / 1680D, PU or PVC coated
Nylon Fabric
420D, 1000D Cordura-type, ripstop
Neoprene Fabric
2-5 mm padded, insulating
Free colour card and swatches
Get air mesh swatches and a quote in 12 hours
Tell us the bag type, quantity and destination. We send a colour card, air mesh swatches and two or three build proposals.
